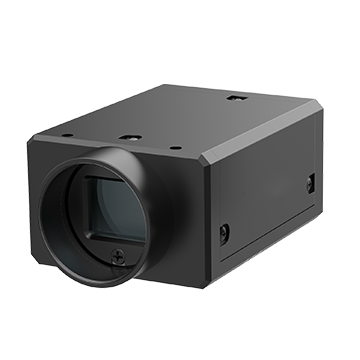

GigE Camera | HC-CE200-10GM 20 MP 1" Mono CMOS GigE Area Scan Camera
- Model
- HC-CE200-10GM
Item specifics
- Sensor type
- COMS, rolling shutter
- Sensor
- IMX183
- Pixel size
- 2.4 µm × 2.4 µm
- Sensor size
- 1
- Resolution
- 5472 × 3648
- Max. Frame Rate
- 5.9 fps
- Mono/Color
- Mono
- Data Interface
- GigE
- Lens mount
- C-Mount
- Dimension
- 44 mm × 29 mm × 59 mm
- Compatibility
- GigE Vision V2.0, GenlCam
Review
Description
|
Model |
Model |
HC-CE200-10GM |
|
Type |
20 MP, 1" CMOS, GigE Area Scan
Camera |
|
|
Camera |
Sensor type |
CMOS, rolling shutter |
|
Sensor |
IMX183 |
|
|
Pixel size |
2.4 µm × 2.4 µm |
|
|
Sensor size |
1" |
|
|
Resolution |
5472 × 3648 |
|
|
Max. Frame Rate |
5.9 fps |
|
|
Dynamic range |
65.5 dB |
|
|
SNR |
41.5 dB |
|
|
Gain |
0 dB to 20 dB |
|
|
Exposure time |
46 μs to 2 s |
|
|
Shutter mode |
Off/Once/Continuous exposure mode,
supports Global Reset |
|
|
Mono/Color |
Mono |
|
|
Pixel format |
Mono 8/10/10p/12/12p |
|
|
Binning |
Supports 1 × 1, 2 × 2, 4 × 4 |
|
|
Decimation |
Not support |
|
|
Reverse image |
Supports horizontal reverse image output |
|
|
Image buffer |
128 MB |
|
|
Electrical features |
Data Interface |
GigE |
|
Digital I/O |
6-pin Hirose connector provides power and
I/O, including opto-isolated input × 1 (Line 0), optoisolated output × 1
(Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
|
|
Power supply |
12 VDC, supports PoE |
|
|
Power consumption |
Typ. 3.1 W@12 VDC |
|
|
Mechanical |
Lens mount |
C-Mount |
|
Dimension |
44 mm × 29 mm × 59 mm (1.7" ×
1.1" × 2.4") |
|
|
Weight |
< 100 g (0.22 lb.) |
|
|
Ingress protection |
IP30 (under proper lens installation and
wiring) |
|
|
Temperature |
Working temperature: 0 °C to 50 °C (32 °F
to 122 °F) |
|
|
Humidity |
20% to 80% RH, without condensation |
|
|
General |
Client software |
MVS or third-party software meeting with
GigE Vision Protocol |
|
Operating system |
32/64-bit Windows XP/7/10, 32/64-bit
Linux and 64-bit MacOS |
|
|
Compatibility |
GigE Vision V2.0, GenlCam |
|
|
Certification |
CE, FCC, RoHS, KC |
|
|
Camera |
Acquisition mode |
Continuous mode and SingleFrame mode |
|
Binning |
Supports 2 x 2, 4 x 4 |
|
|
Reverse image |
Supports horizontal reverse image output |
