Portable Thermal Camera | Guide MobIR Air CB360 Fever Scanner for Smartphone
- Model
- MobIR Air CB360
Item specifics
- IR Resolution
- 120×90 @17μm WLP
- Spectral Range
- 8～14μm
- Focal Length
- 2.3mm F1.1
- Field of View (FOV)
- 50°±1°
- Image Display/Capture
- JPEG
- Power
- 5V/≤150mW
Review
Description
üSafe: temperature screening from 1.2 meters away, ensure social distance and avoid cross-infection
üEfficient: scan and show the temperature instantly
üSimple: plug and play, easy to use
üAutomatic: Sound an alarm and capture an image while identifying the elevated temperature
üImaging enhancement: GUIDE’s Unique MIF (Multi-spectral Imaging Fusion) technology, enhance the thermal image by the camera of smartphone
üImage data can be reported and shared by social media
|
Category |
Item |
Specifications |
|
IR Detector |
IR Resolution |
120×90 @17μm
WLP |
|
Spectral Range |
8～14μm |
|
|
Lens |
Focal Length |
2.3mm F1.1 |
|
Field of View (FOV) |
50°±1° |
|
|
Focus |
Focus-free |
|
|
Imaging |
Frame Rate |
25Hz |
|
Functions |
Temperature
Measurement Accuracy |
Temperature
measuring from 0.5 ~ 1.2 meters;, accuracy≤ ± 0.5 ℃, target temperature range
28 ℃ ～ 40 ℃ |
|
Multi-spectral
Imaging Fusion |
Adopt GUIDE's
unique MIF technology, add visible details to the thermal image by the
camera of smartphone |
|
|
Display/Capture |
Saved as JPEG
images |
|
|
Interface |
Communication Power
Supply Interface |

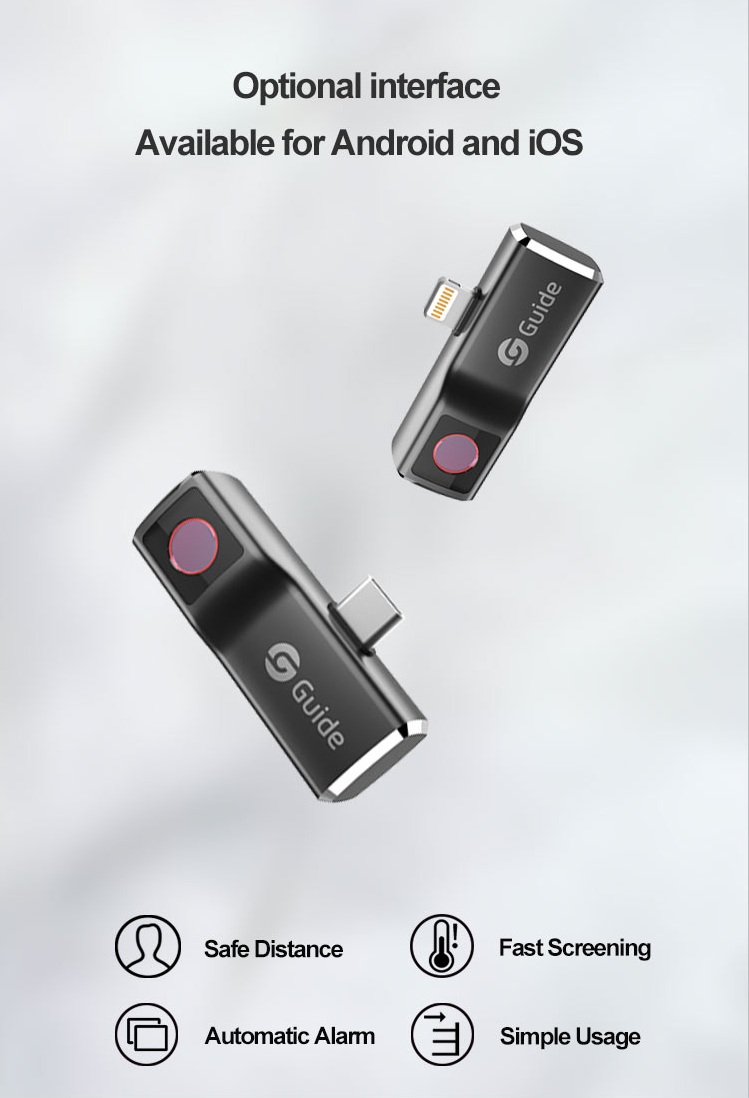

USB Type-C
(Android); Lightning (IOS) |
|
Powwer Supply |
Input Voltage |
5V，Powered
by smartphone |
|
Typical Power
Consumption |
≤150mW |
|
|
Environmental
Adaptability |
Operating
Temperature |
0℃-40℃ |
|
Storage Temperature |
-10℃-55℃ |
|
|
Drop Test |
1-meter drop test |
|
|
Others |
Weight |
Net weight -20g，Gross
weight- 80g |
|
Dimensions |
51mm×18mm×15.6mm (L
x W x H) (excl.USB interface) |
|
|
Package Dimensions |
102mm×72mm×38mm (L x
W x H) |
|
|
Certifications |
RoHS、CE、FCC |
|
|
Standard
Accessories |
Fever Scanner,
Quick Start Guide, Warranty Card |
