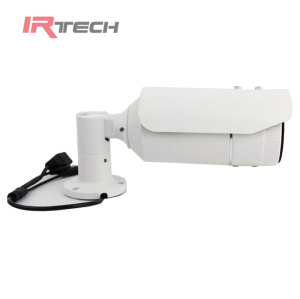

DM63-F Series Network Thermal Imager
Item specifics
- Detector Type
- Uncooled FPA
- Resolution
- 384×288
- Pixel Pitch
- 25μm
- Spectral Range
- 8~14μm
- NETD
- ≤0.06℃@30℃
- Temp Range
- -20 ℃~+650 ℃, Optional extended to 1200℃
- Storage Format
- Image (.bmp) / Video (H.264)
- Network Interface
- RJ-45 Ethernet
Review
Description
Item |
DM63-F-9 |
DM63-F-18 |
DM63-F-37 |
|
Detector |
Type |
Uncooled FPA |
||
Resolution |
384×288 |
|||
Pixel Pitch |
25μm |
|||
Spectral Range |
8~14μm |
|||
Imaging Performance |
Spatial
Resolution |
2.78mrad |
1.39mrad |
0.67mrad |
FOV/Minimum
Focal Length |
51°×38°/0.1m |
25°×19°/0.1m |
12°×9°/0.5m |
|
NETD |
≤0.06℃@30℃ |
|||
Frame Rate |
50/60Hz |
|||
Focus |
Fixed Focus /
Athermalized Infrared Lens |
|||
Temperature Measurement |
Temp Range |
-20 ℃~+650 ℃, Optional extended to 1200℃ |
||
Calibration |
Manual /
Automatic |
|||
Accuracy |
±2℃ 或 ±2% of
reading (whichever is greater) |
|||
Measurement
Modes |
up to 4 spot,
3 region measurement (High/Low/Average), Line Measurement, Isotherms,
temperature difference, temperature alarm |
|||
Palettes |
11 colors
palettes (Iron red, Rainbow, White hot, Black hot...and more) |
|||
Brightness/Contrast |
Manual /
Automatic Adjustment |
|||
Settings |
Temperature
grade, Reference, Correction, Analysis, ℃/℉/K, Language, Time, IP, Reset |
|||
Emissivity
Correction |
0.01 ~ 1.0 |
|||
Background
Temp Correction |
Automatic |
|||
Atmospheric
Transmissivity Correction |
Automatic |
|||
Storage |
Raw Image |
Raw images
real-time transfer via client control software, the images are analyzable and
measureable |
||
Storage Format |
Single Frame
Image Format (.bmp) / Continuous Recording Format (H.264) |
|||
Power Supply |
External Power |
10~15V DC |
||
Power
Consumption |
≤7W(at 25℃ nominal ) |
|||
Environment |
Operating Temp |
-15℃~ +50℃ |
||
Storage Temp |
-40℃~+60℃ |
|||
Protection
Class |
IP54 |
|||
Physical Property |
Weight |
≤1Kg( w/o Lens
) |
||
Size |
203mm×76mm×72mm(w/18m lens) |
|||
Interface |
Input Voltage |
DC10~15V |
||
Analog Video |
PAL(50HZ) |
|||
Digital Video |
1000Mbit/s,50FPS |
|||
Serial Port |
RS485 |
|||
Network
Interface |
RJ-45 Ethernet |
