DLD-J Series Observation NetworkThermal Camera

Item specifics

Detector Type: Detector

Resolution: 384×288/640×480

Pixel Pitch: 25μm/17um

Spectral Range: 8~14μm

Frame rate: 50Hz

Ethernet: RJ-45 (10/100BASE-T)

Video compression format: H.264, Motion JPEG

Protection class: IP66

Review

Description

DLD-J Series Observation Thermal Camera

- 384×288/640×480 uncooled FPA

- Athermalized fixed-focus lens, the focal length is not affected by environment temperature.

- Pseudo-color: can switch between different colour modes and display the temperature of objects with different colours.

- Intelligent fire detection function: multi-target fire detection, efficient detection, reduce false alarms

Item		Specification
		DLD-J series
		DLD-JXX-384	DLD-JXX-640
Video	Detector type	Uncooled FPA
	Resolution	384×288	640×480
	Pixel pitch	25um	17um
	NETD	≤50mK@F1，300K，50Hz	≤60mK@F1，300K，50Hz
	Spectral range	8-14μm
	Frame rate	50Hz
	Video output	CVBS : 1.0 Vp-p / 75Ω composite，720x480(N)，720x576(P)，
Lens	Focus length and FOV	9mm:53.1°×41.6°	9mm：59.1°×46.1°
		18mm:29.9°×22.2°	18mm：33.6°×25.5°
		37mm:14.8°×11.1°	37mm：16.7°×12.6°
		50mm:11°×8.7°	50mm：12.4°×9.3°
	Focus	Athermalized fixed lens, lens waterproof, hard carbon film
	Minimum focal length	9mm: 1.8m~∞	9mm: 2.4m~∞
		18mm: 6m~∞	18mm: 8m~∞
		37mm: 20m~∞	37mm: 25m~∞
		50mm: 28m~∞	50mm: 36m~∞
Tilt	Tilt range	0-90 degree
Operation	Electric zoom	1×/ 2×/3×/4×
	Brightness/gain	Manual
	Noise reduction	Close/open
	Image enhancement	Close/open
	Pseudo color	12 modes switching
	Calibration	Manual, auto calibration when open, timing calibration during working
	Flip/mirror	ON / OFF
	Alarm event	upload the file via FTP inform via e-mail Local storage or NAS recording when an event (alarm triggered) occurs
Network	Ethernet	RJ-45 (10/100BASE-T)
	Video compression format	H.264, Motion JPEG
	Resolution	720x576 / 720x480 / 640x480 / 384x288 / 320x240
	Maximum frame	H.264﹕maximum 30 fps Motion JPEG﹕640x480﹕maximum 15 fps
	Video quality modulation	H.264﹕compressed level, target bit rate level control
	Bit rate control	H.264﹕CBR or VBR
	Audio compressed format	G.711A/G.711U/G.726
	Application programming interface	OnVif Profile S
	Web viewer	Supported wed browser : Microsoft Internet Explorer (vision 9~11)
Environment	Working temperature	-20℃～+50℃ scalable to -40℃~ +60℃
	Storage temperature	-45℃~ +70℃
	Input voltage/current	DC12V±10% PoE(IEEE802.3af, Class3)
	Consumption	6W（normal working） 6W(PoE, Class3) （room temperature normal working ）
	Protection class	IP66
Machine	Color/material	Ivory/aluminum

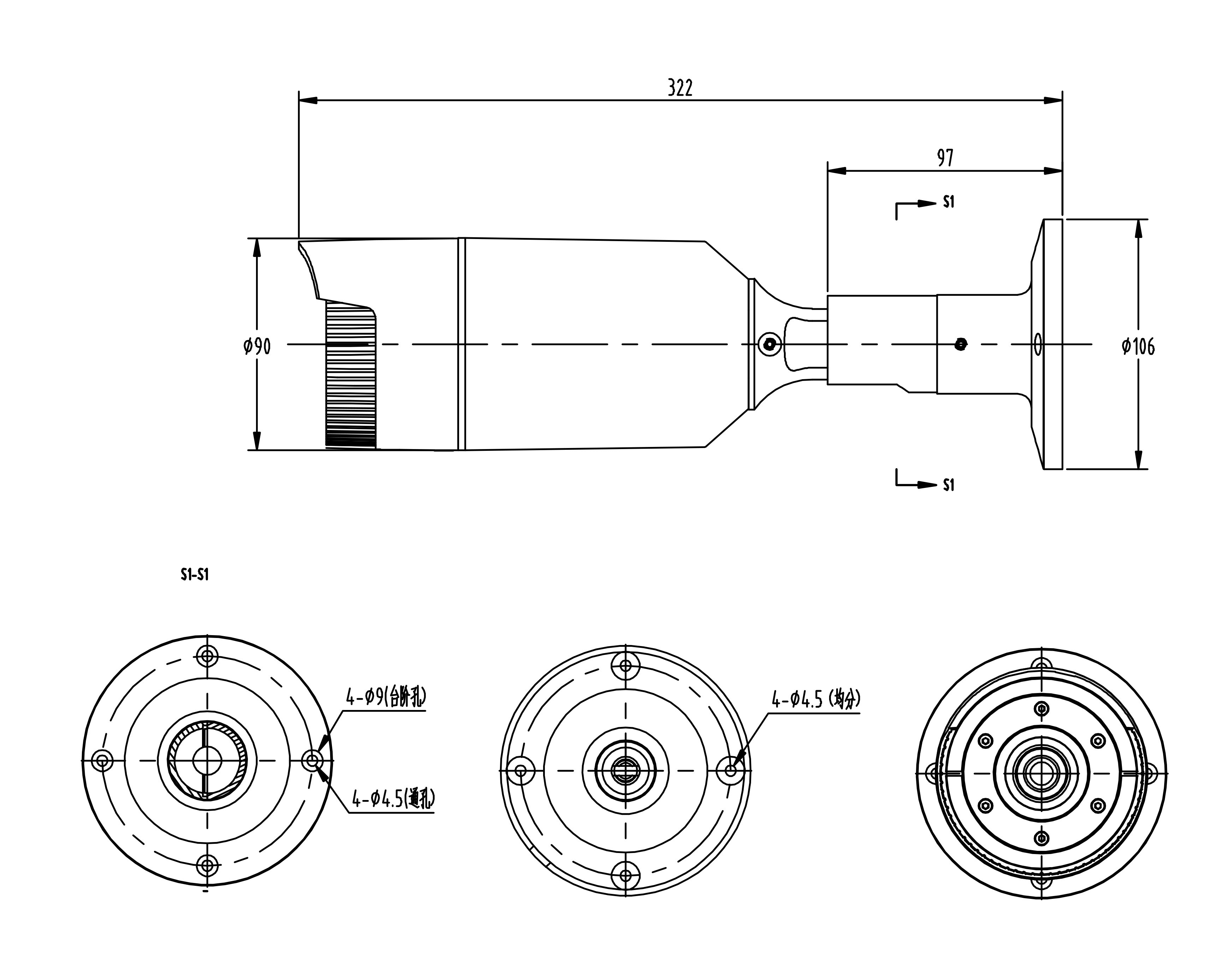

	Dimension	Length ：322mm Maximum outside diameter：90mm
	Weight	1.24Kg
