GigE Camera | HC-CU050-60GM 5.0 MP 1/2.5'' Mono CMOS GigE Area Scan Camera

GigE Camera | HC-CU050-60GM 5.0 MP 1/2.5'' Mono CMOS GigE Area Scan Camera

Model: HC-CU050-60GM

Item specifics

Sensor type: CMOS, global shutter

Pixel size: 2.2 μm

Sensor size: 1/2.5''

Resolution: 2592 × 1944

Max. Frame Rate: 23.1 fps

Mono/Color: Mono

Data Interface: GigE

Lens mount: C-Mount

Dimension: 29 mm × 29 mm × 42 mm

Compatibility: GigE Vision V1.2, GenICam

Review

Description

GigE Camera | HC-CU050-60GM 5MP 1/2.5" Mono CMOS GigE Area Scan Camera

HC-CU050-60GM camera adopts CMOS sensor to provide high-quality images. It uses GigE interface to transmit non-compressed images in real time, and its max. frame rate can reach 23.1 fps in full resolution

Key Feature

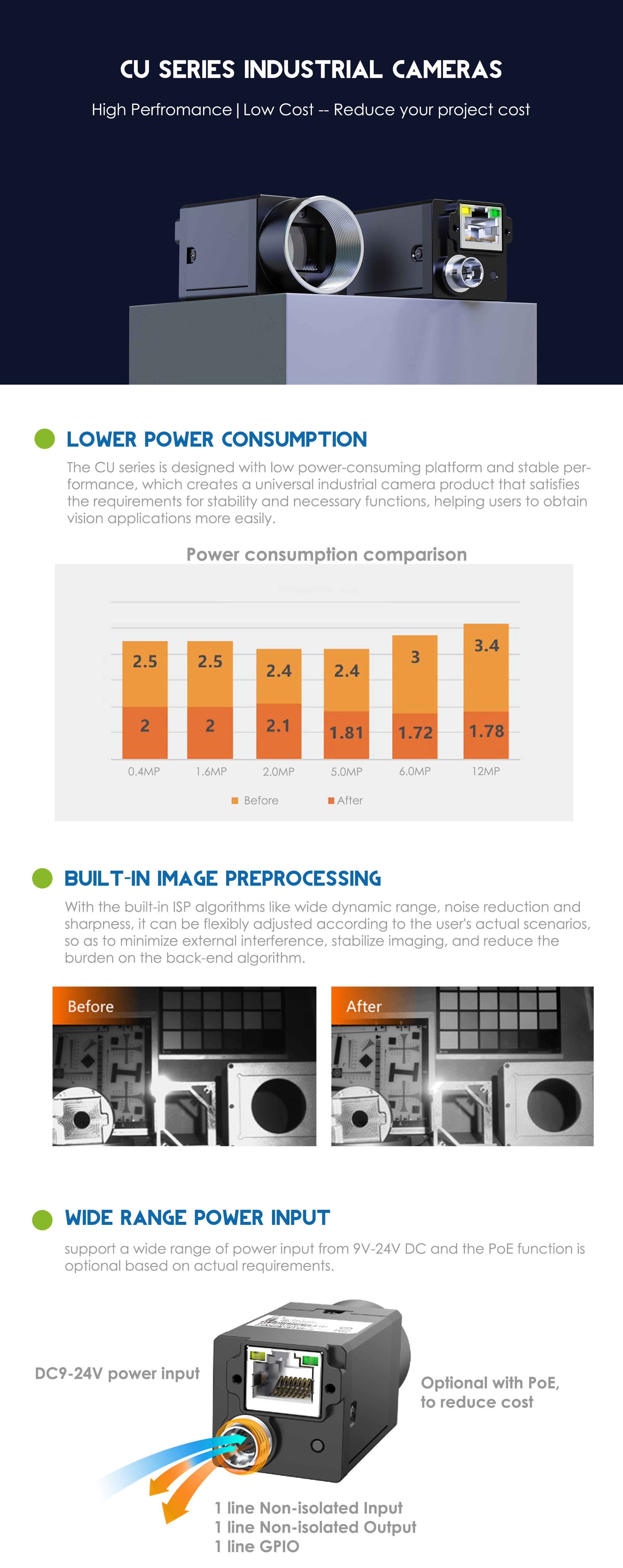

■ Adopts low power consumption design with stable performance.

■ Supports auto and manual adjustment of gain, exposure time, etc.

■ Supports hardware trigger, software trigger, free run, etc.

■ Adopts GigE interface and max. transmission distance of 100 meters without relay.

■ Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.

Specification

Model	Product Model	HC-CU050-60GM
Model	Type	5MP Area Scan Camera, GigE
General	Client software	MVS or third-party software meeting with GigE Vision Protocol
	Operating system	32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS
	Certification	CE, FCC, RoHS, KC
	Compatibility	GigE Vision V2.0, GenICam
Performance	Binning	Supports 1 × 1, 2 × 2
	Sensor size	1/2.5"
	Max. frame rate	23.1 fps @2592 × 1944 Mono 8
	Sensor type	CMOS, rolling shutter
	Mono/color	Mono
	Exposure mode	Off/Once/Continuous exposure mode
	Gain	0 dB to 24 dB
	Resolution	2592 × 1944
	Decimation	Supports 1 × 1, 2 × 2, 4 × 4
	Dynamic range	70.2 dB
	Pixel format	Mono 8/10/10Packed/12/12Packed
	Pixel size	2.2 μm × 2.2 μm
	Exposure time	24 μs to 2.5 sec
	Reverse image	Supports horizontal and vertical reverse image output
	SNR	40.8 dB
Mechanical	Weight	Approx. 76 g (0.17 lb.)
	Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
	Lens mount	C-Mount
	Humidity	20% to 95% RH, non-condensing
	Dimension	29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7")
	Ingress protection	IP30 (under proper lens installation and wiring)
Electrical feature	Data interface	GigE
	Power supply	9 VDC to 24 VDC, PoE is optional
	Power consumption	Typ. 2.5 W@12 VDC
	Digital I/O	6-pin P7 connector provides power and I/O, including non-isolated input × 1 (Line 0), non-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
